Floor Plans, Elevations & Permit Sets
Permit-ready drafting for builders, designers, and architects. Measured floor plans, code-compliant elevations, site plans, and complete permit submittal sets, drafted to submit. First drafts in 4 days.
Get a QuoteFrom a single drawing to a full submittal
Permit submittal set

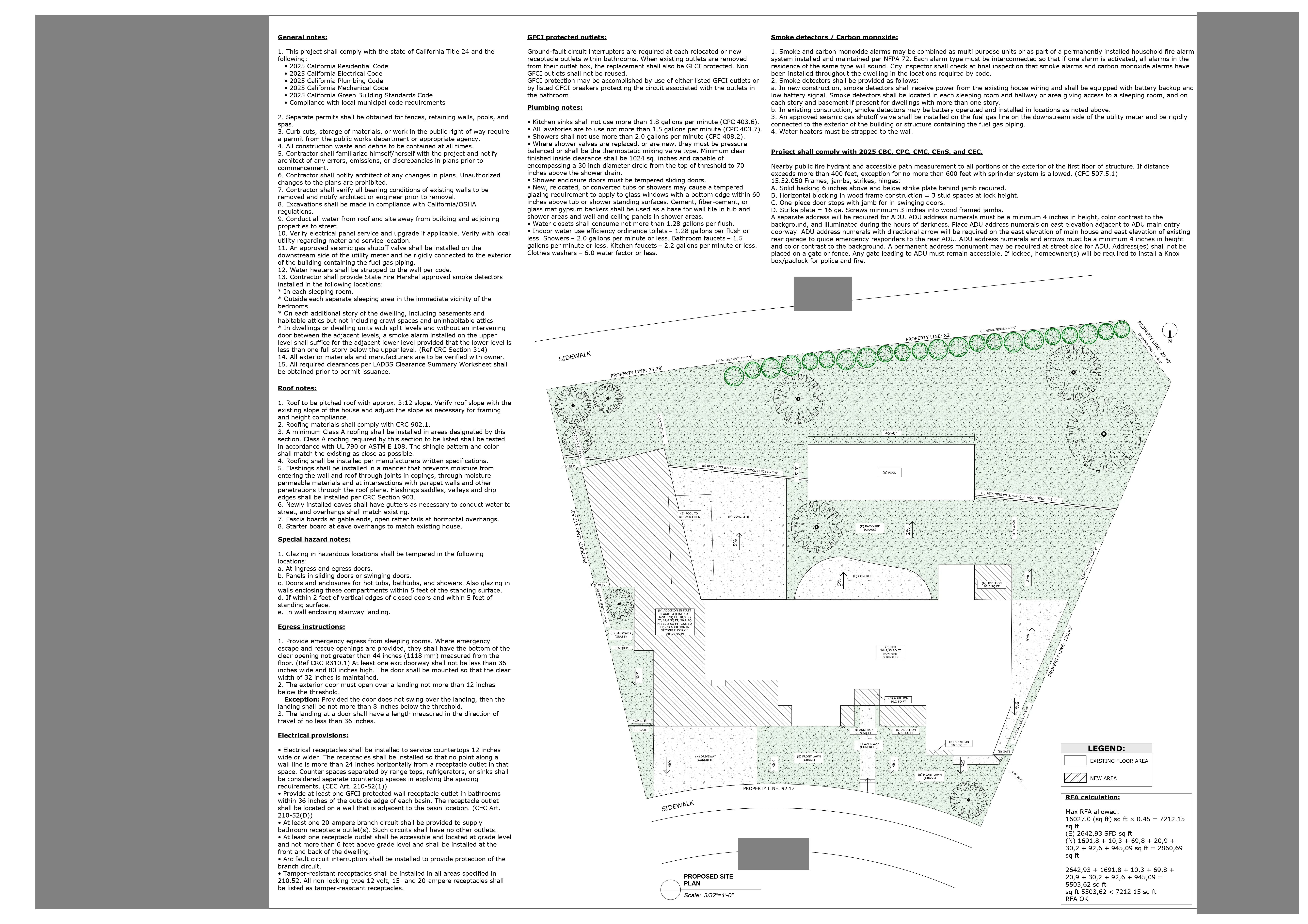

- Site plan

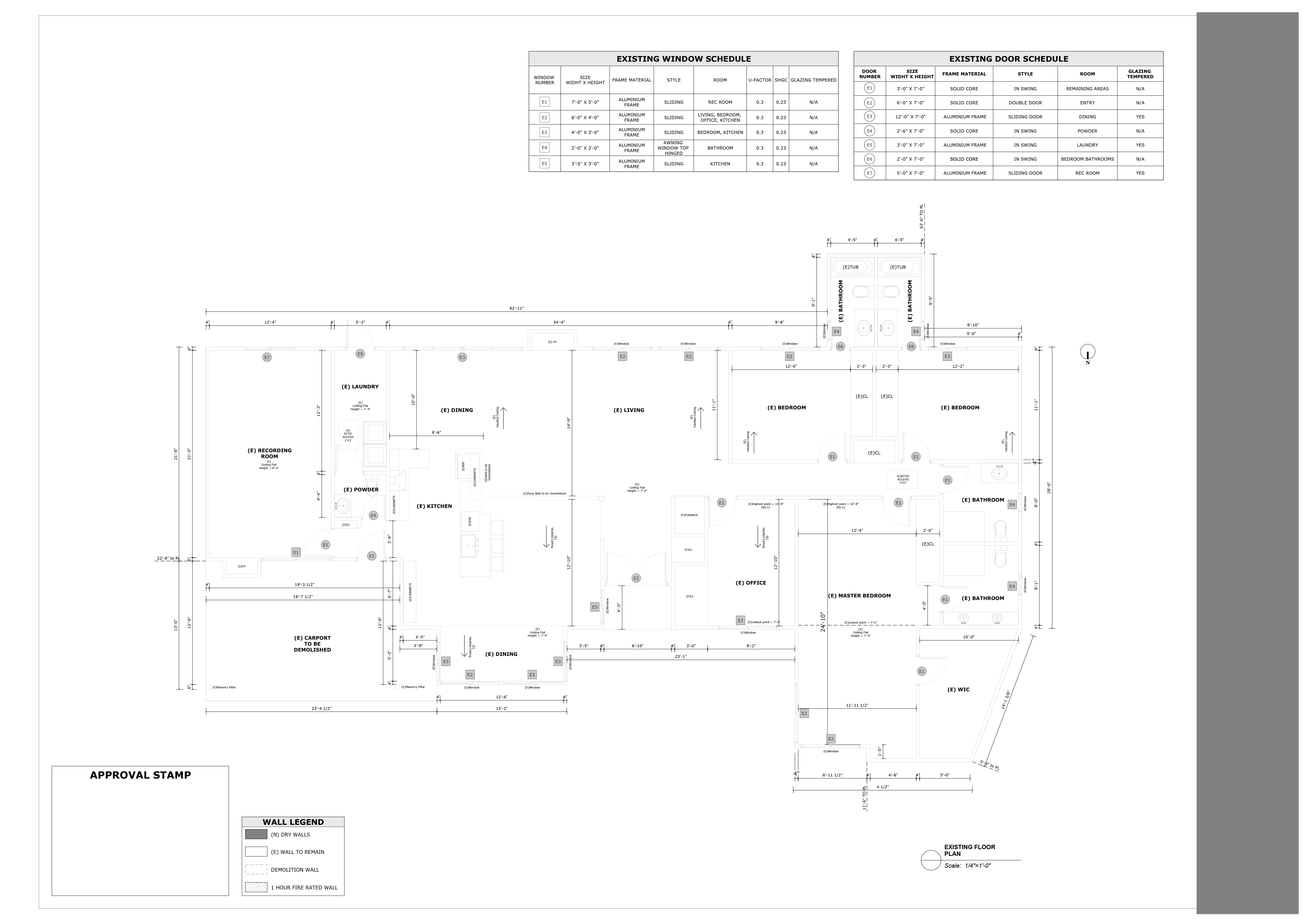

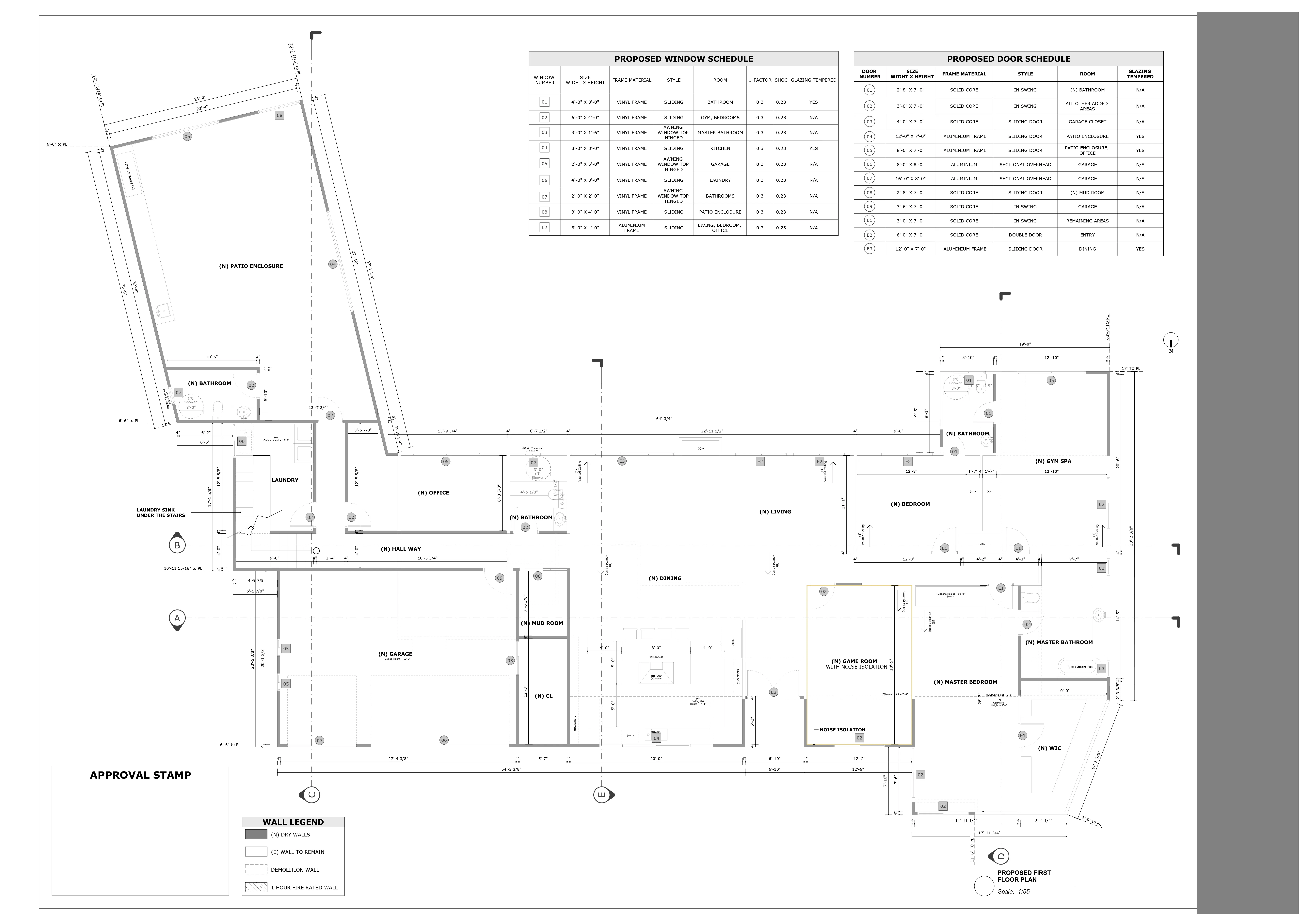

- Code-compliant floor plans

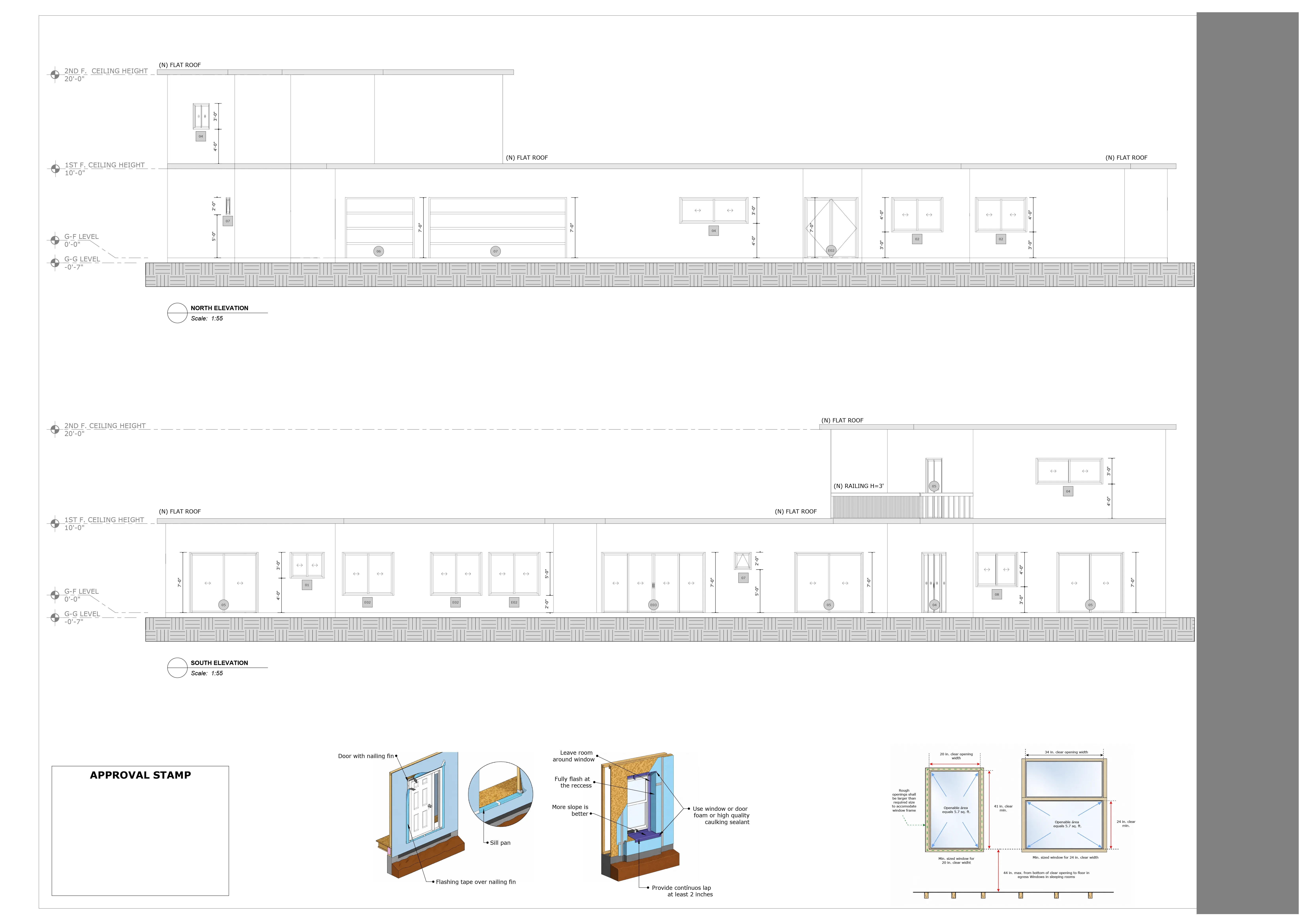

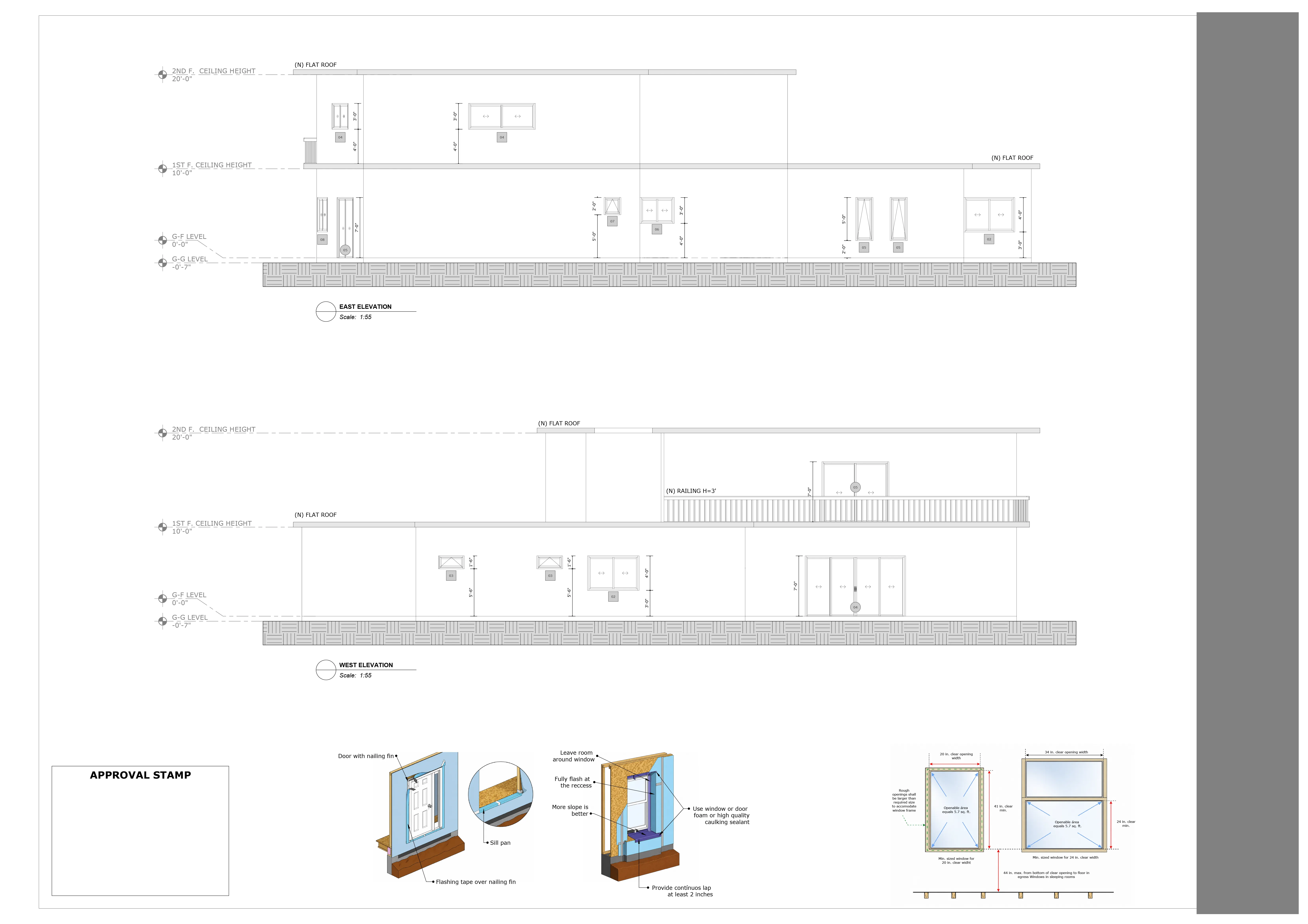

- Exterior elevations

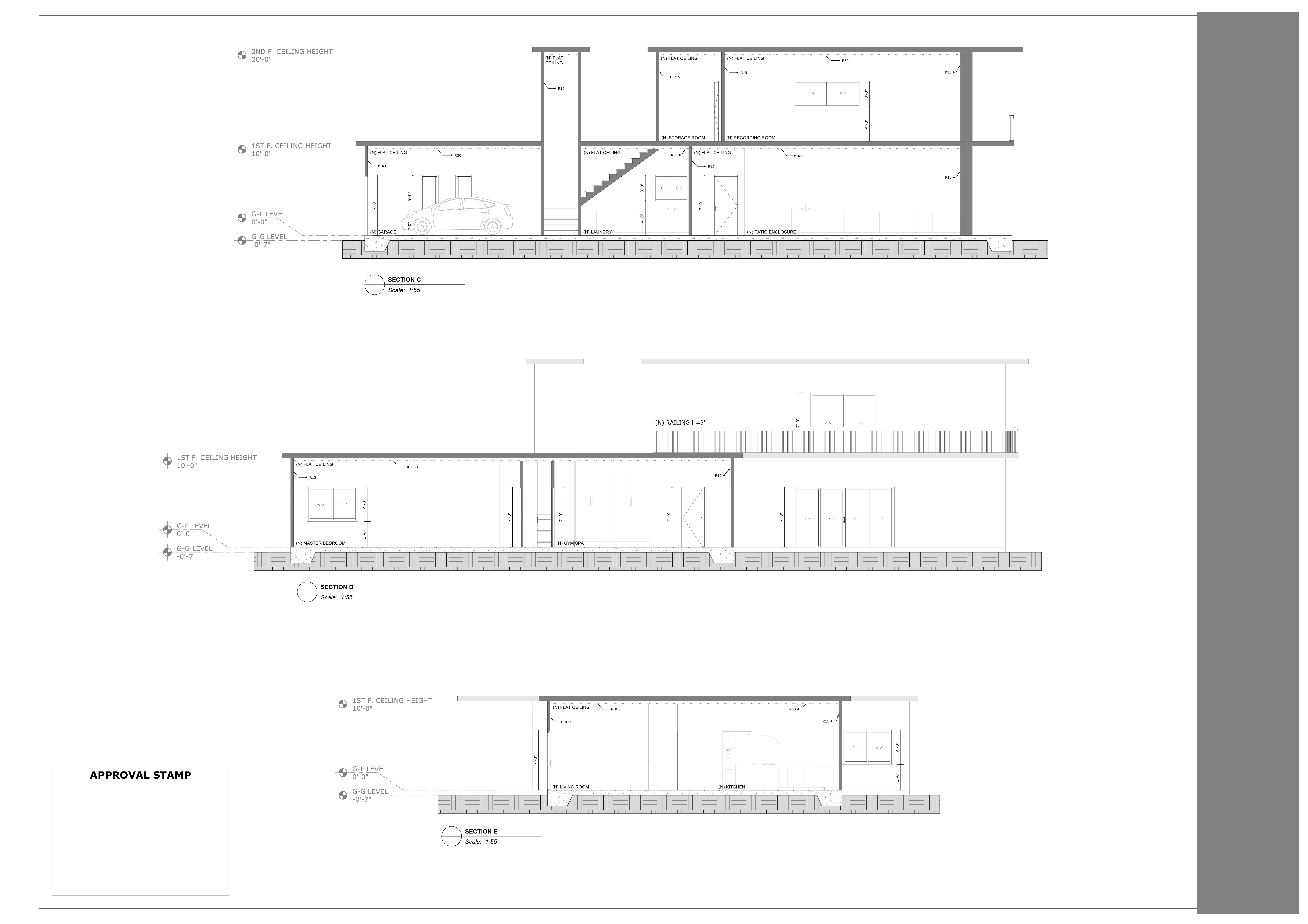

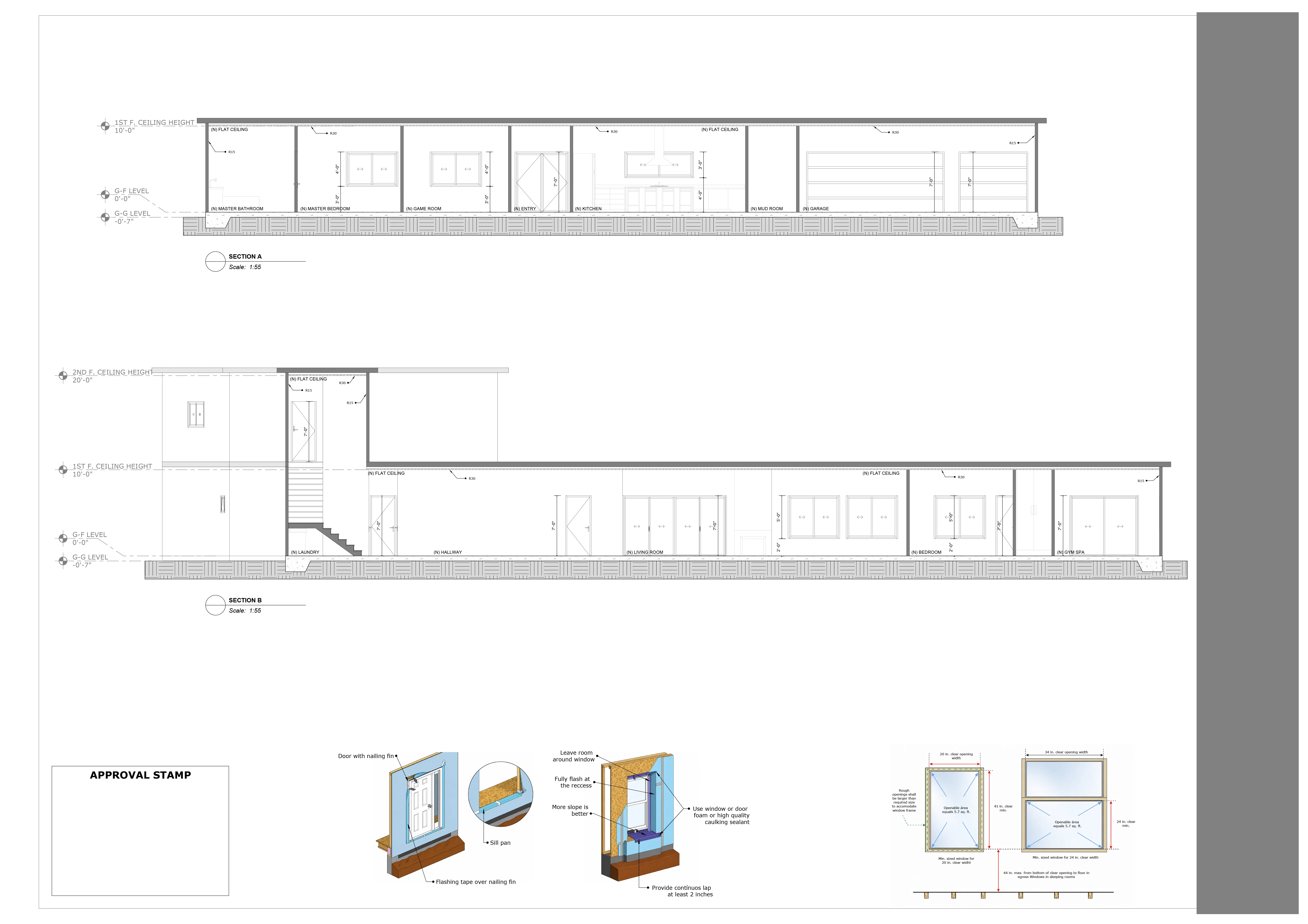

- Building sections

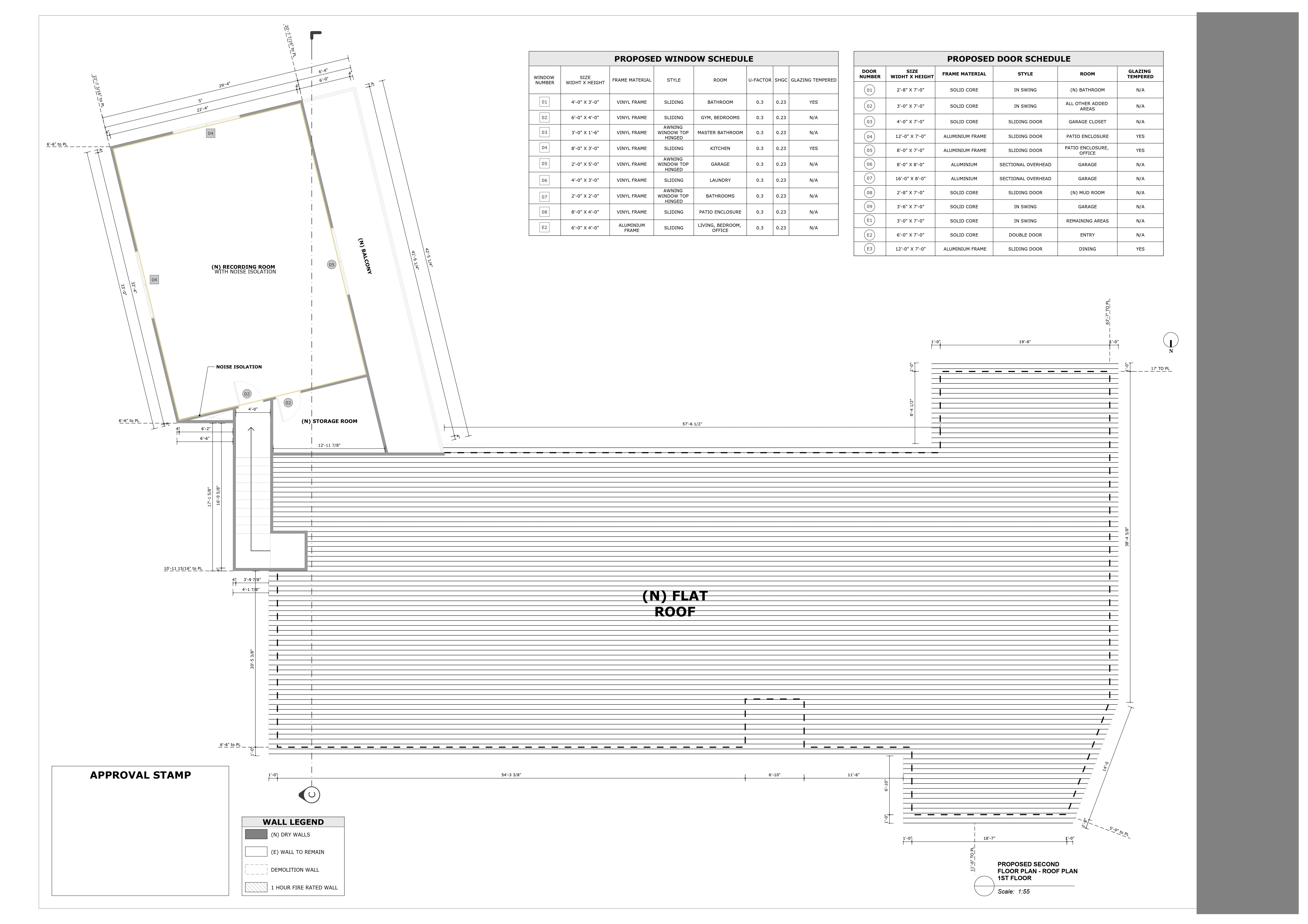

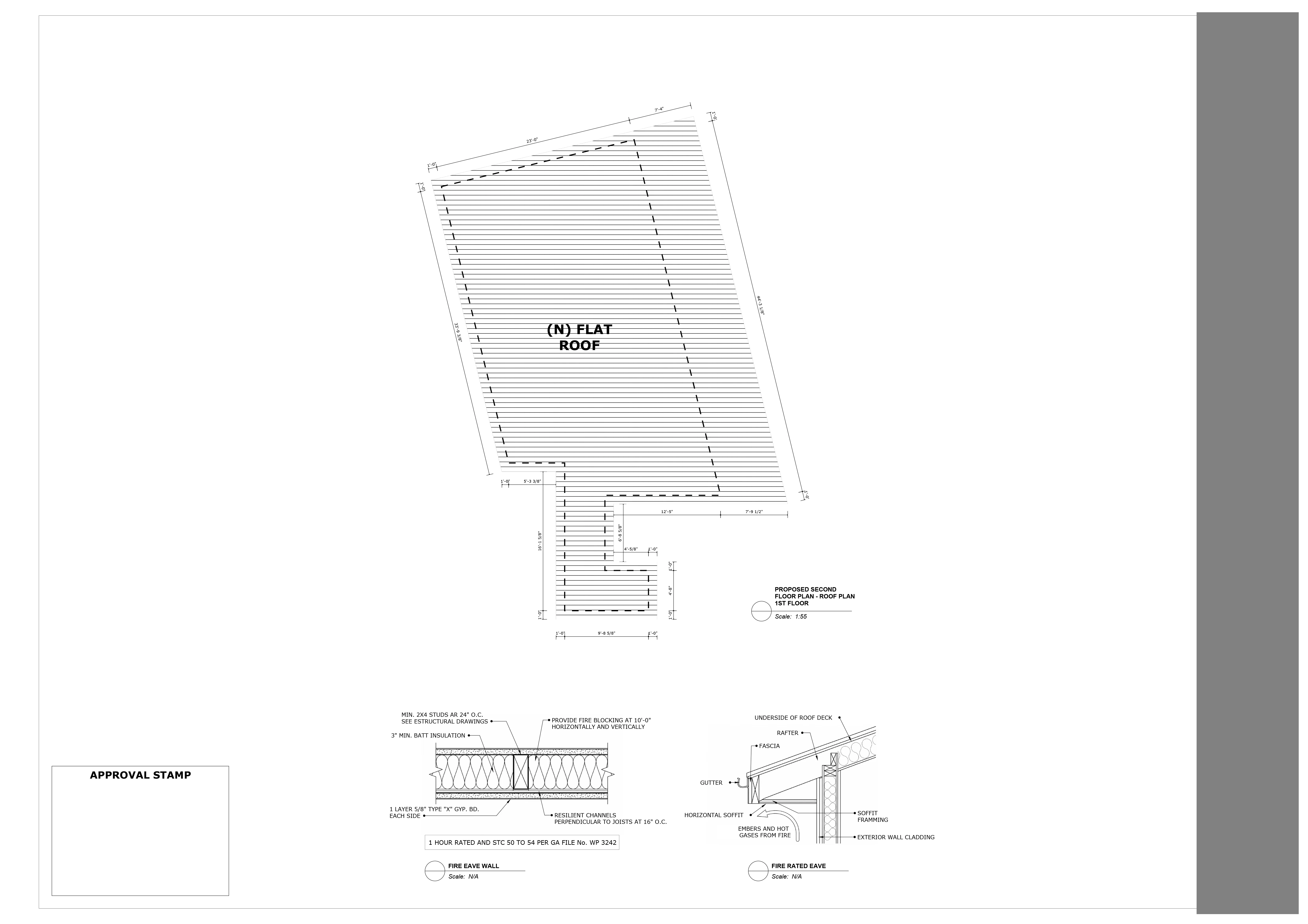

- Roof plan
- Door & window schedules
- General notes & code sheets
Individual drawings & detailing
- As-built drawings
- Interior elevations

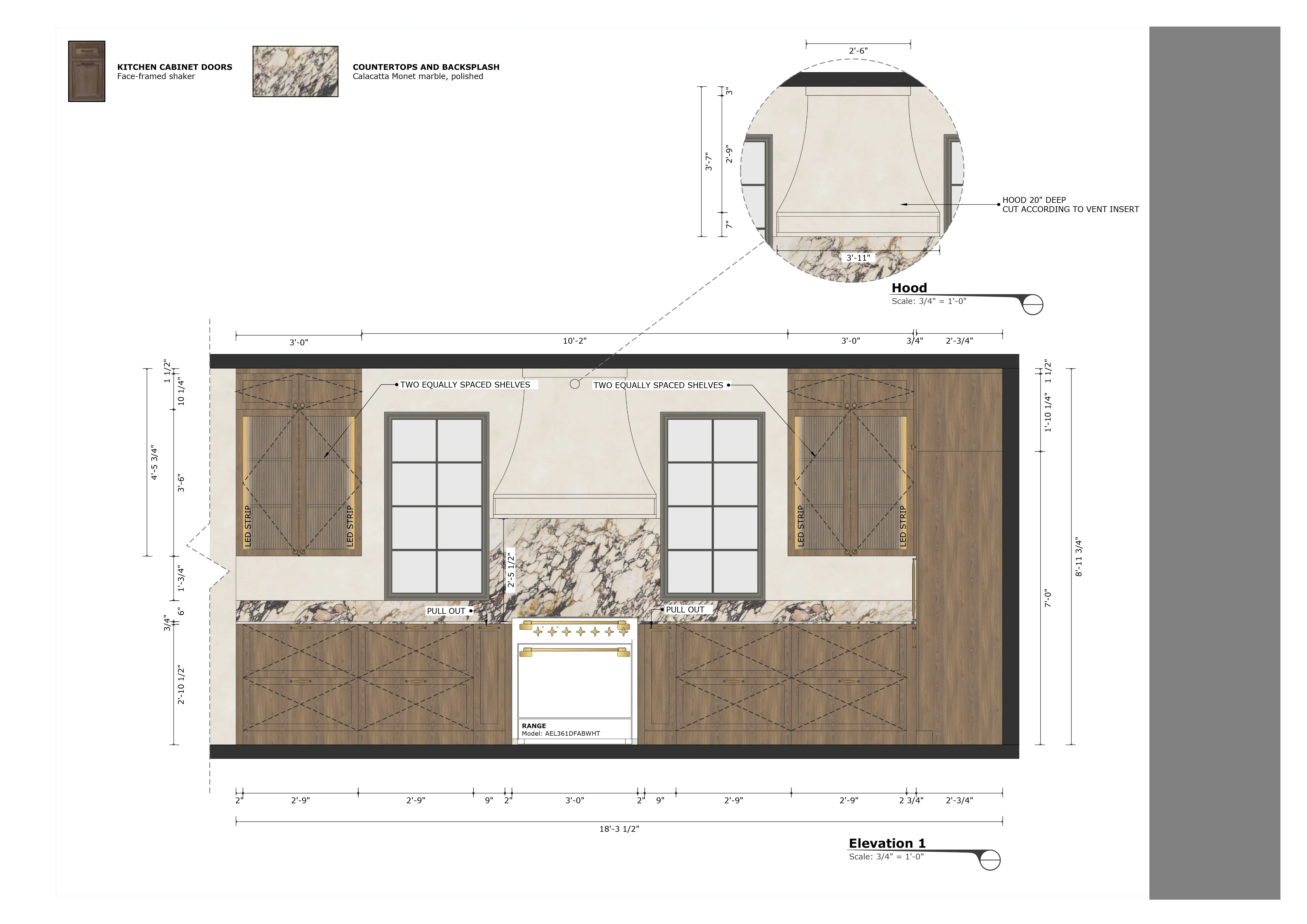

- Cabinetry & millwork elevations
- Materials & finish schedules
- Demolition plans
- Reflected ceiling plans
Drawings drafted to submit

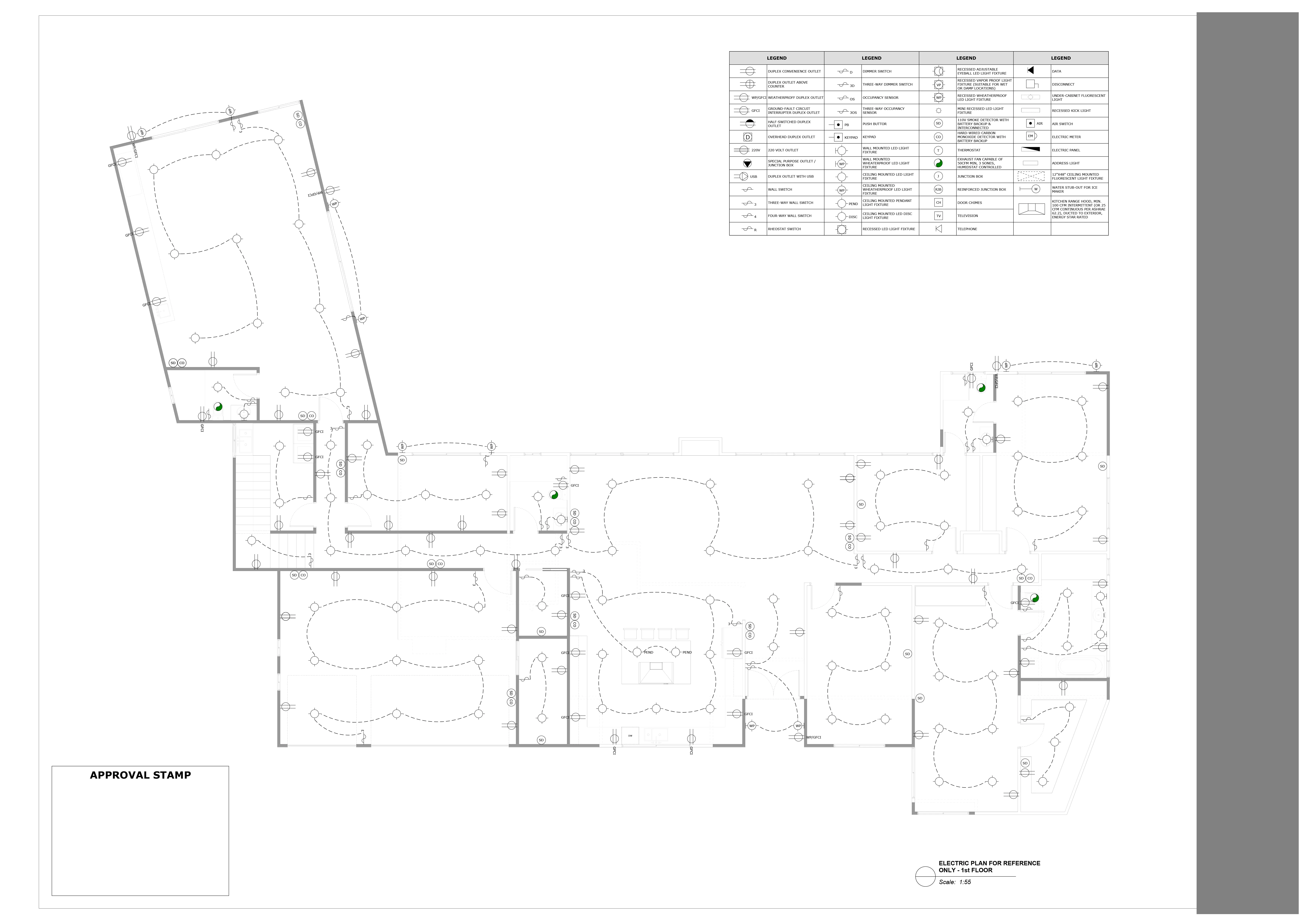

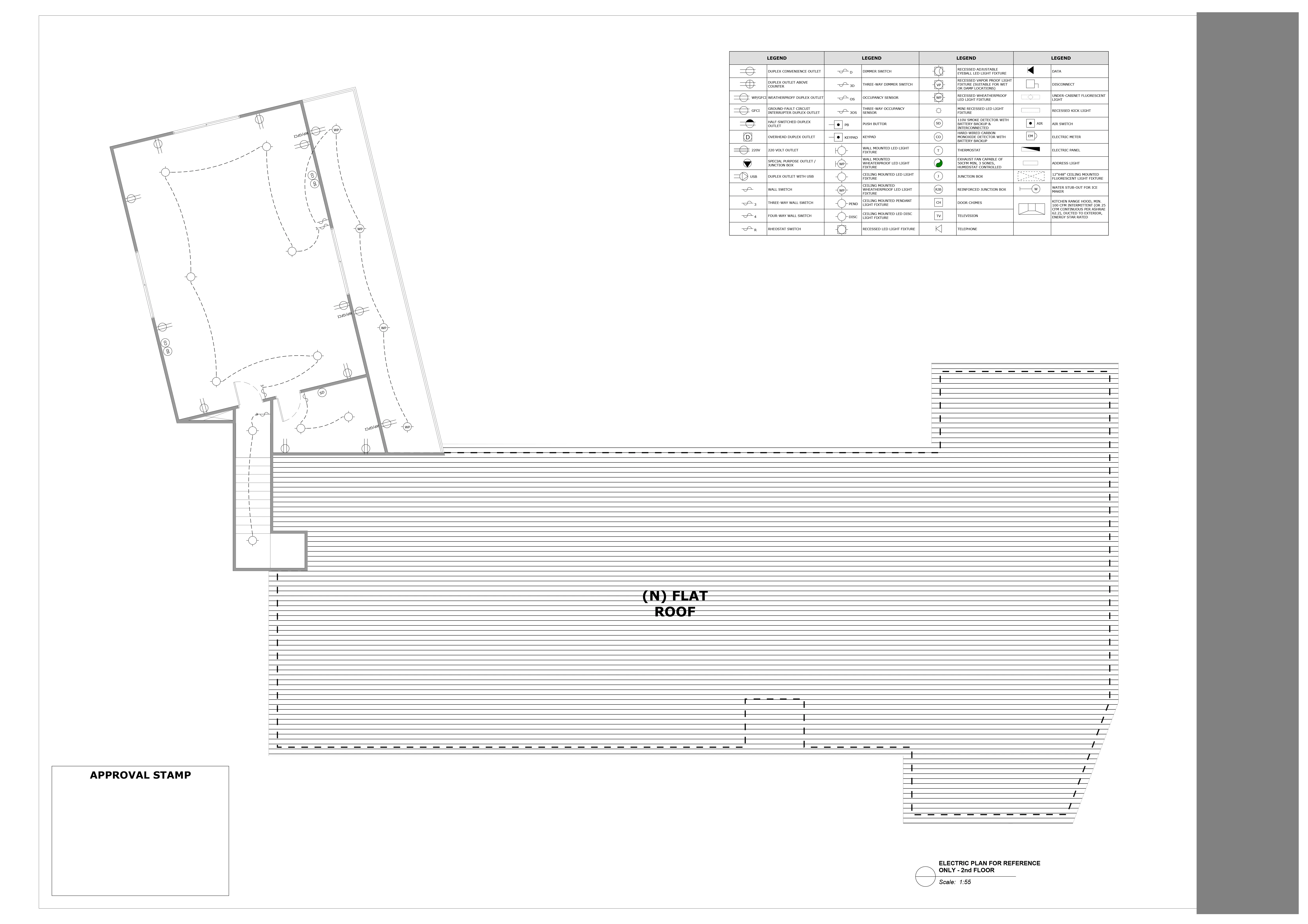

Full permit sets

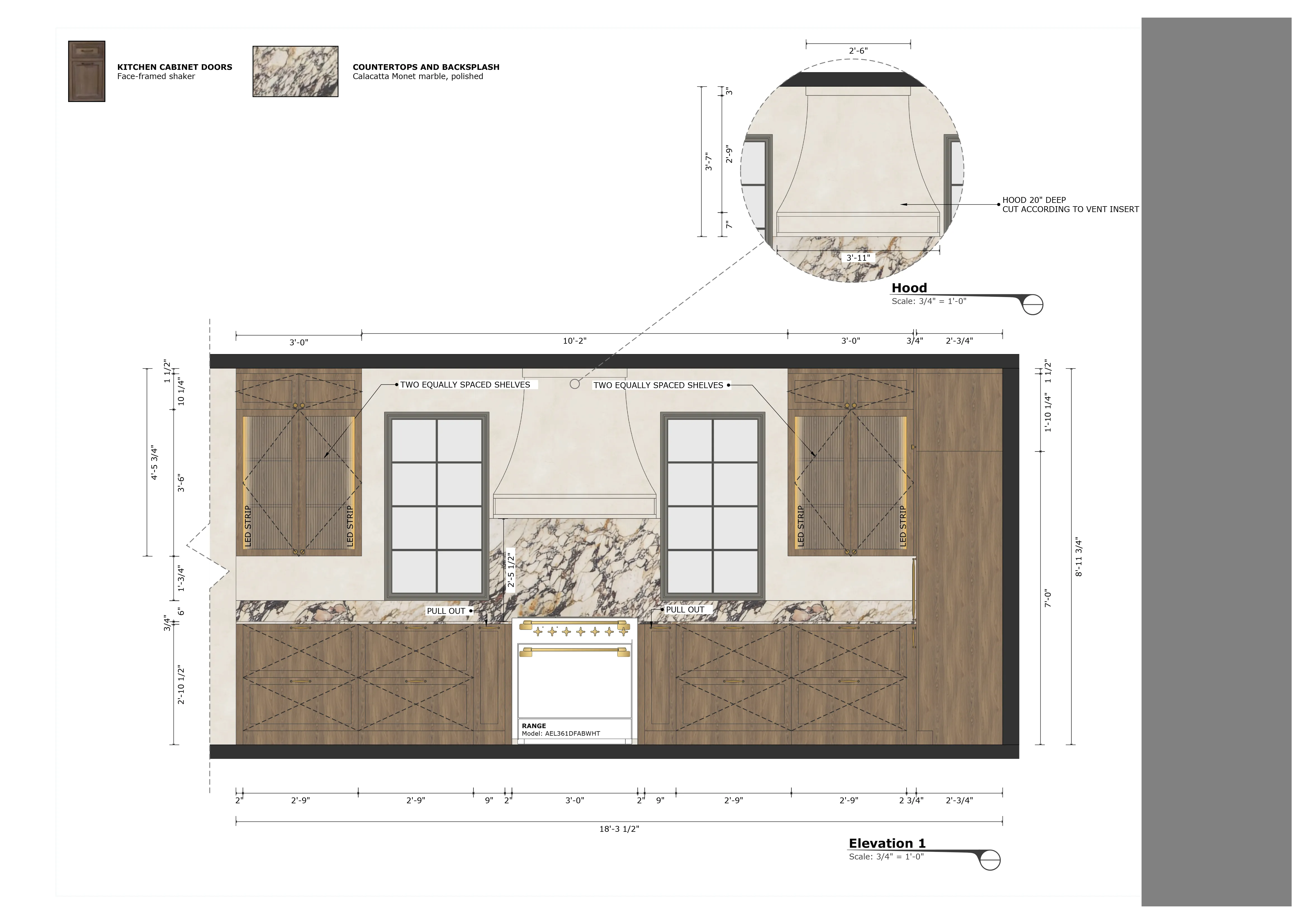

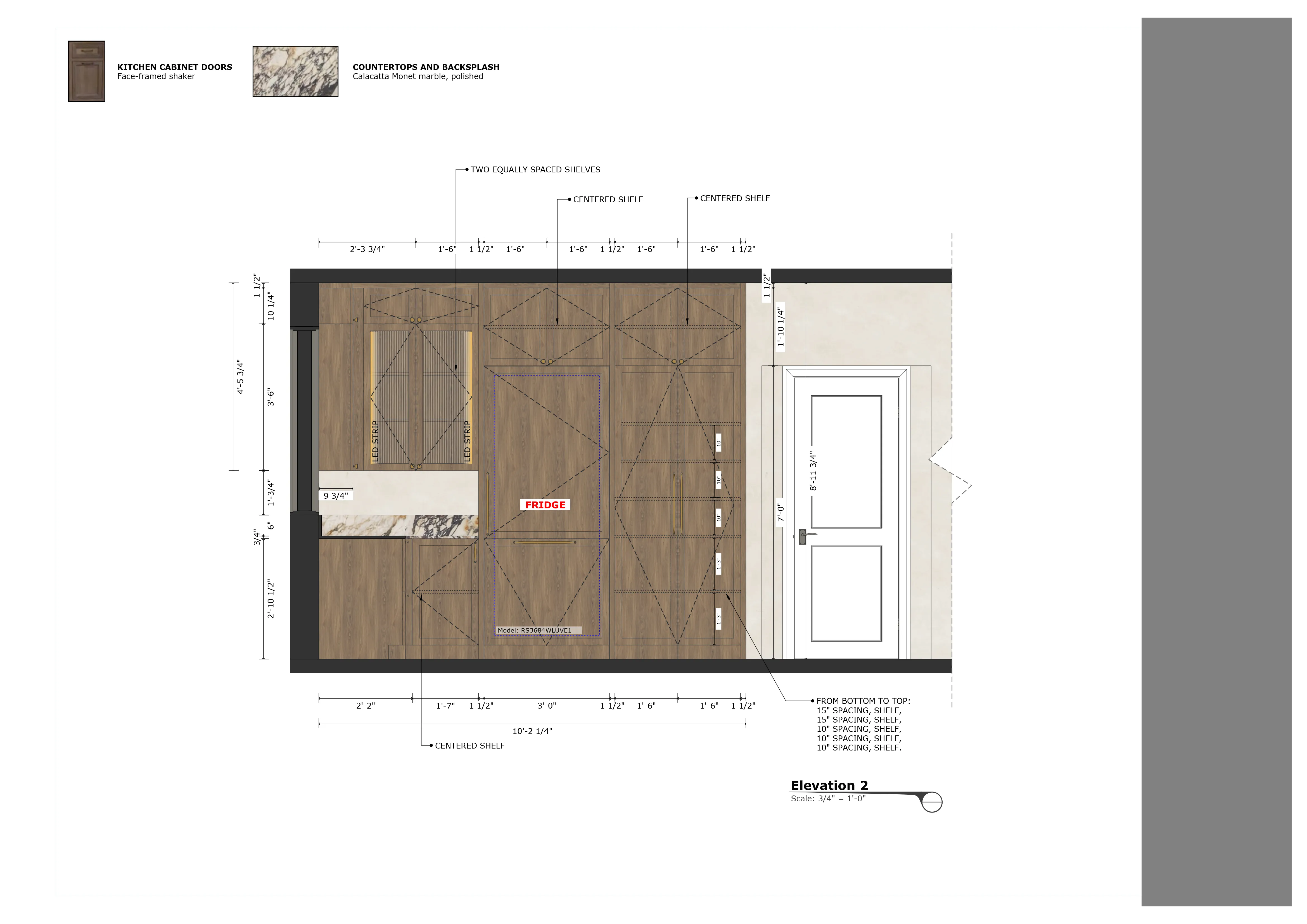

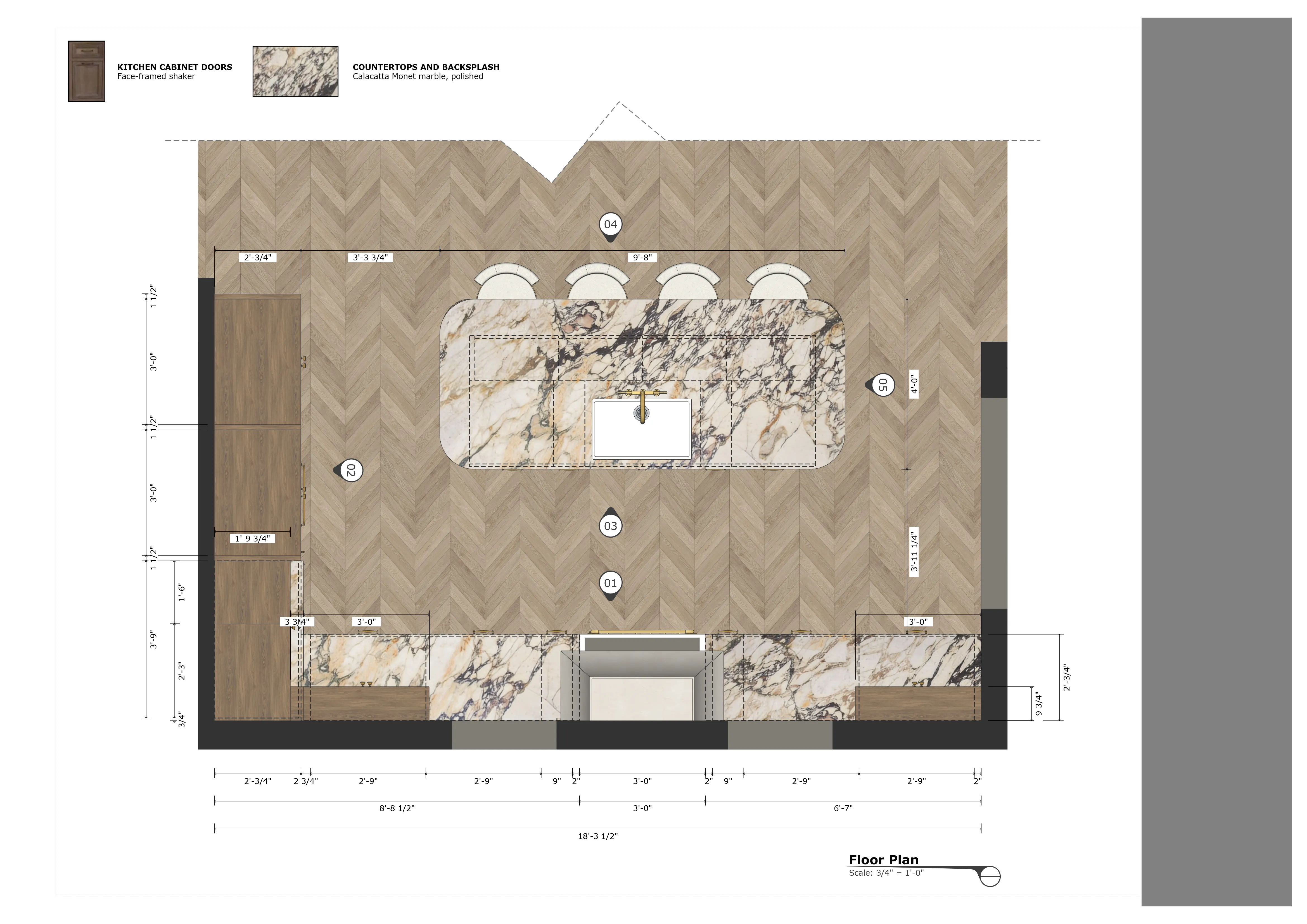

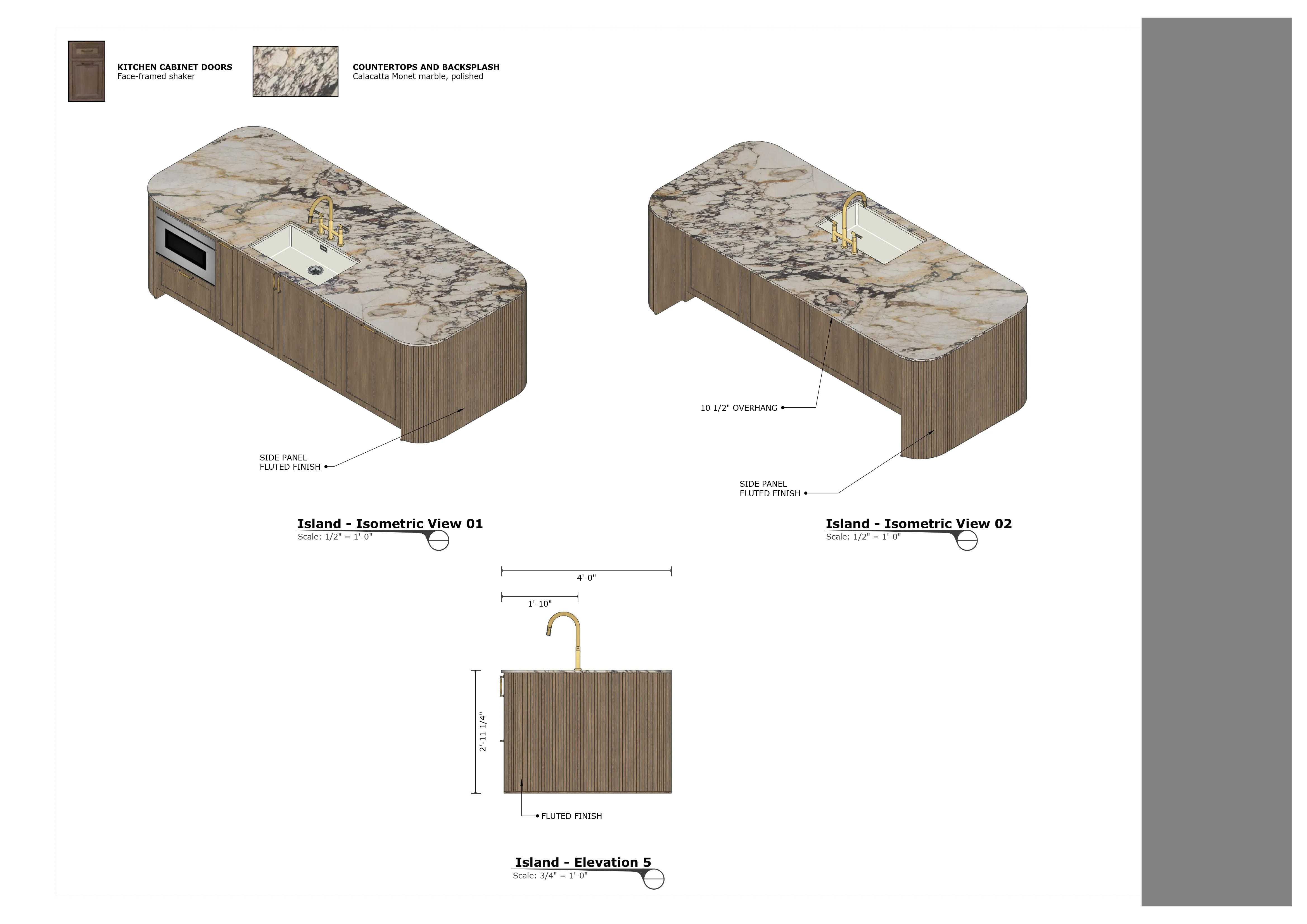

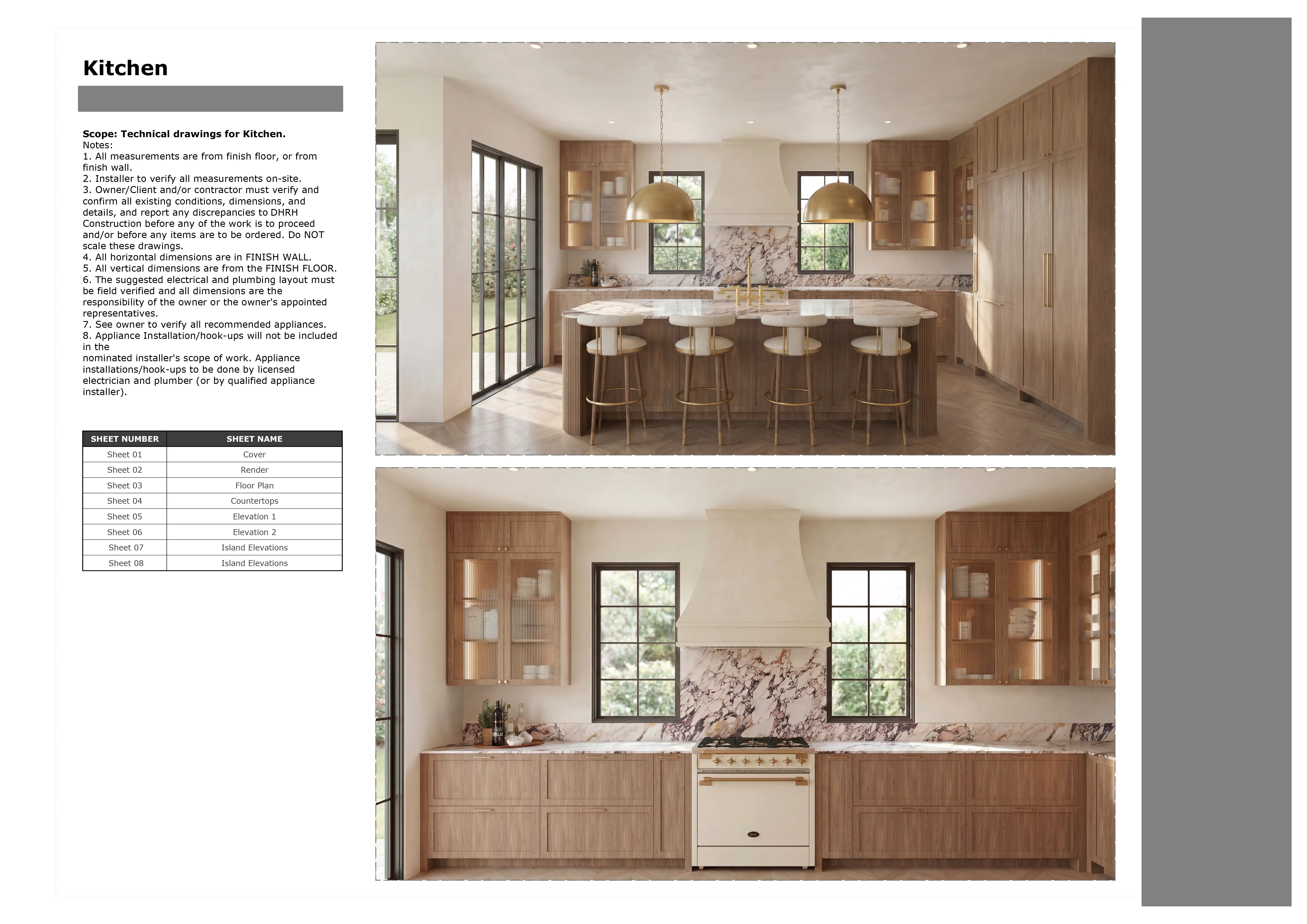

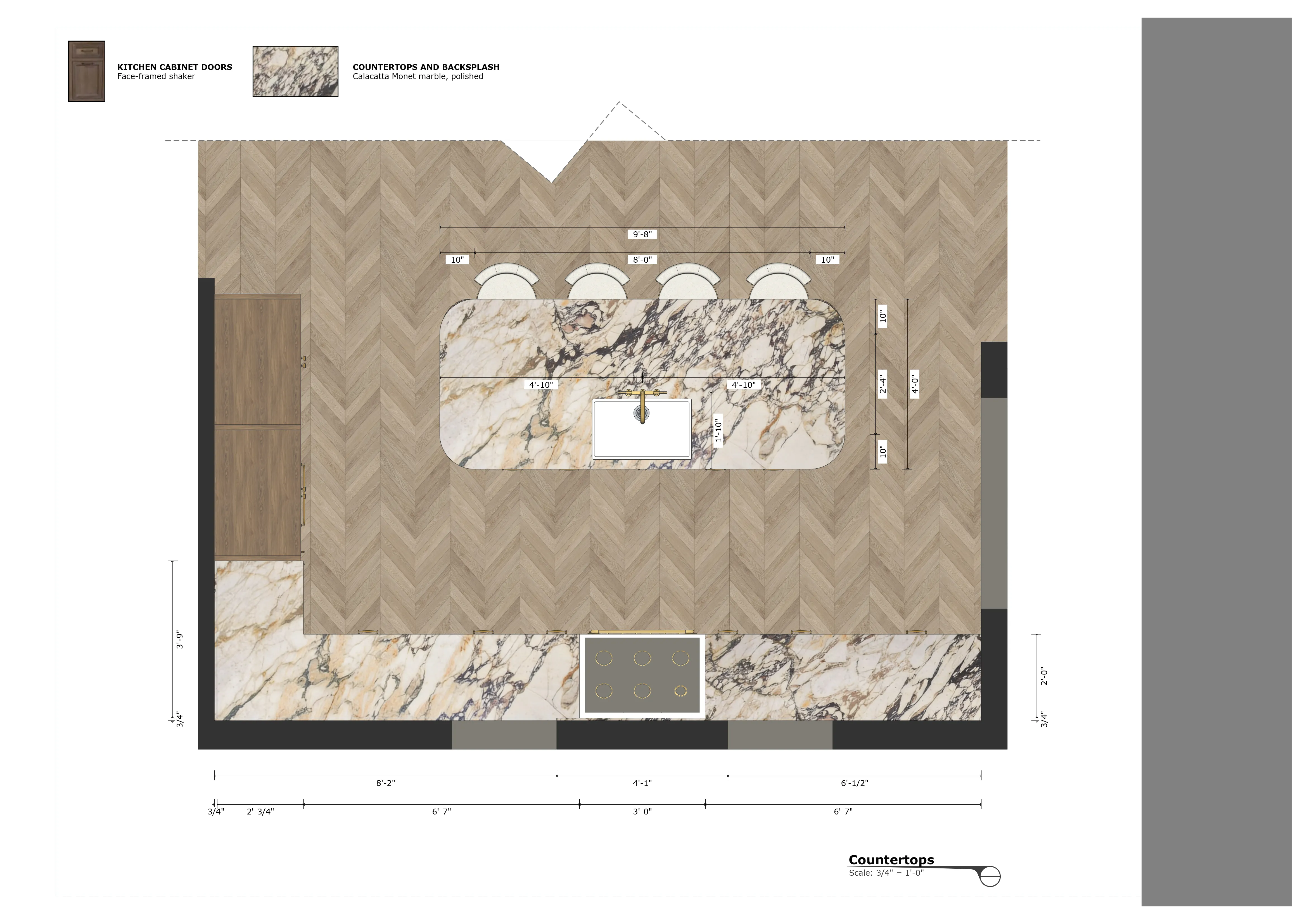

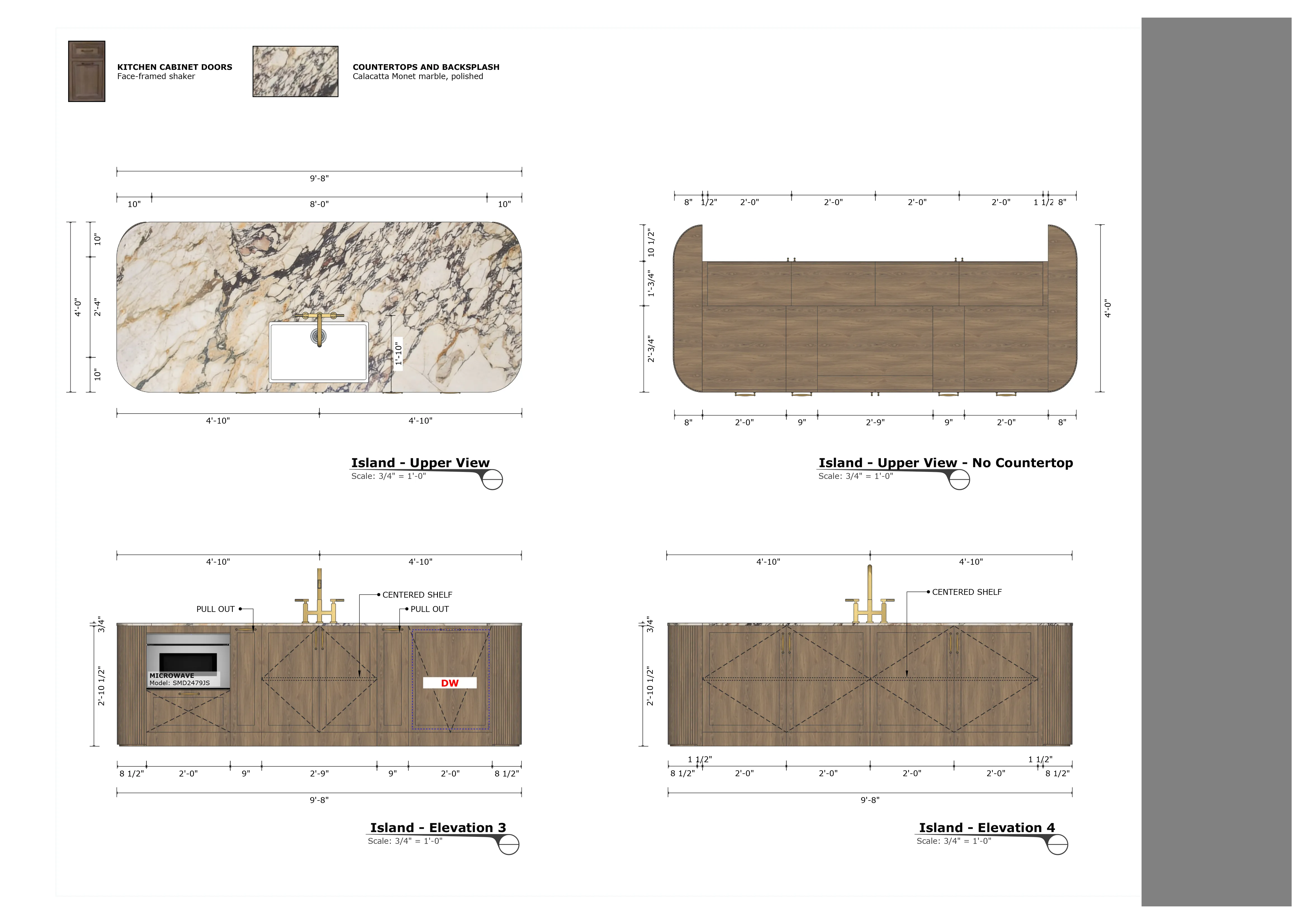

Interior cabinetry, floor plans & elevations
Clear pricing, quoted per project
From $200 per drawing
Individual drawings such as floor plans and elevations start at $200. Full permit sets are quoted per project. 50% deposit to start, balance on delivery by wire.
- Number of sheets in the set
- Residential or commercial scope
- New build, addition, or remodel
- Jurisdiction requirements
Made for the people who build
Builders & contractors
Permit-ready sets that keep projects moving through the building department.
Designers
Drafting support so you can focus on the design, not the documentation.
Architects
Overflow drafting and detailing for permit and construction sets, on a reliable clock.
Developers
Additions, remodels, and change-of-use projects drawn for permit and approval.
From brief to permit-ready
- 01
Share your project
Send your survey, existing plans, photos, and scope.
Day one - 02
First drafts
We draft the set and send it for your review.
Within 4 days - 03
Revisions
We refine to your markups and code requirements.
Revision rounds included - 04
Permit-ready
You get a submittal-ready set, and we support reviewer comments.
Through approval
Need it visualized too?
Unlike most drafting services, we also produce photorealistic 3D renders and walkthroughs. Draft the cabinetry, then show your client exactly how it will look, all from one studio.
See our rendering services
Permit & drafting FAQs
What is a permit set?
A permit set is the package of drawings a building department requires to approve your project. It typically includes a site plan, code-compliant floor plans, exterior elevations, sections, a roof plan, schedules, and general notes.
What’s the difference between a permit set and construction documents?
A permit set is drawn to satisfy the building department’s review and approval. Construction documents are the fuller, more detailed set the trades build from. We can prepare either, scoped to what your project needs.
How much does it cost?
Individual drawings such as floor plans and elevations start at $200. Full permit sets are quoted per project, based on the number of sheets, the scope, and your jurisdiction’s requirements.
How fast will I get my first drafts?
We send first drafts within 4 working days. The delivery clock counts our working days and pauses while we wait on your feedback or survey information.
Are your drawings code-compliant and accepted by the building department?
Yes. We draft to current code for submission to your authority having jurisdiction (AHJ), and we support revisions and reviewer comments through approval.
Do you work across the United States?
Yes. We prepare permit-ready drawings for projects across the US and adjust to local code and jurisdiction requirements.
Do you handle residential and commercial?
Both, including additions, remodels, change of use, tenant improvements, and new construction.
What file formats do I receive?
Print-ready PDF sets formatted for submission, with editable CAD (DWG) files available on request.
Visualize your project
Need drawings drafted to submit?
Send your scope and survey and we'll get you permit-ready. First drafts in 4 days.
